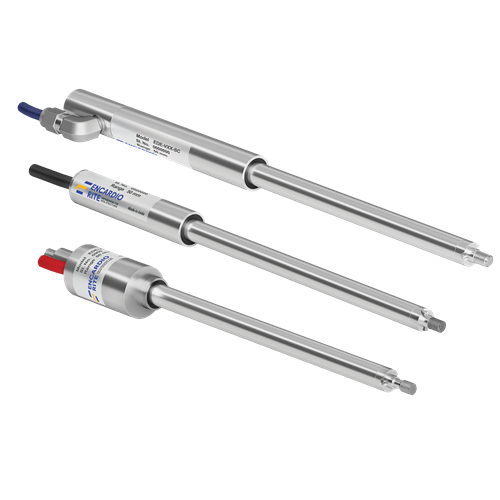

The EDE-VXX linear displacement transducer integrated with a vibrating wire sensor that converts mechanical displacement to an electrical frequency output. This output can be transmitted over long distances and read or logged by Encardio-rite model EDI-51V remote digital readout unit or Encardio-rite model EDAS-10 data acquisition system. The sensor can be used in different other instruments like uniaxial joint meters, triaxial joint meters, crack meters, borehole extensometers, soil extensometers etc.
The sensor is available in the following variants:
Our team will reach out to you in some time
Displacement sensor
Vibrating wire
3 variants available, to suit different applications
To measure displacement, used in crack meters and extensometers, in pile testing
Displacement
15, 25, 50, 100 or 150 mm
Thermal cycling (-20 to +80°C), Thermal variation data, accuracy test, waterproof test for WP version
Versatile sensor, can be used reliably in harsh environment or under deep water
IP-68, water resistant up to 40 mwc, waterproof version up to 100 mwc
Depends on range
