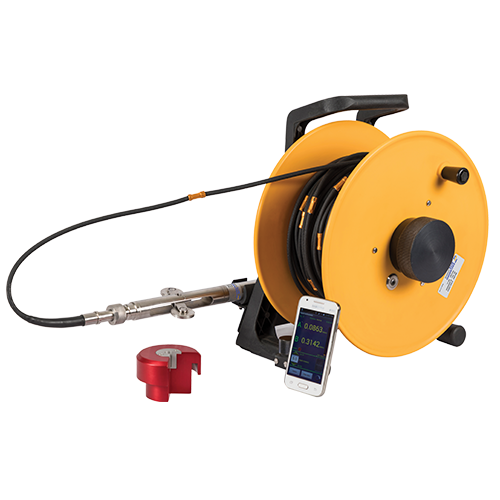

EAN-26M digital inclinometer system consists of a traversing type digital biaxial tilt-sensing probe and a reel unit. The reel unit contains a winding reel that holds the cable and a wireless Bluetooth relay unit that transmits the probe data to the data logger. A rechargeable battery in the reel unit supplies power to the whole system. Operating cable graduated at every 0.5 m (2 ft) includes a high tensile straining member and is supplied with an easy to carry reel.The probe is designed to use all standard inclinometer casings i.e. with OD 70 mm (2.75″) & 85 mm (3.34″).Mobile Readout UnitThe mobile phone readout uses a wireless Bluetooth connection to communicate with the inclinometer reel unit.
Our team will reach out to you in some time
Inclinometer - vertical
MEMS, biaxial; vertical
Consists of probe, Cable reel assembly and accessories for manual readings of vertical gagewell
To measure sub-surface lateral movement in ground or deformation of structure such as retaining wall, pile, dam, deep excavation
Lateral movement/ inclination
± 30° of vertical
Accuracy test, borehole traverse test,
Gage length of 0.5 m provides better profile of deformation. Mobile readout provides excellent features to check data at site
IP-68, water resistant up to 100 mwc
25.5 mm Ø x 685 mm long (excluding wheel arm)
