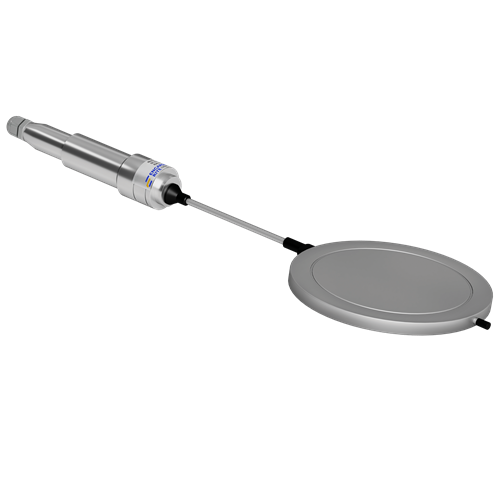

The EPS-30V-I interface pressure cell is used to measure pressure between soil and rock or concrete interfaces. The pressure cell is designed similarly as EPS-30V-S, except a thicker diaphragm on rock/concrete side of the pressure pad, which minimizes point-loading effects.
Our team will reach out to you in some time
Interface pressure cell
Vibrating wire
Suitable for embedment at rock-concrete interface, has a pinch tube
Monitor stress in concrete-rock or soil-concrete interface such as foundtaion slab, raft, etc.
Stress/pressure
0.5, 1.0, 2.0, 3.5, 5.0, 10.0 MPa; specify
Accuracy test, leakproof test (standard tests of pressure sensor)
Hermetically sealed with electron beam welding
IP-68, water resistant up to its full range
200 x 7 mm (dia x T)
