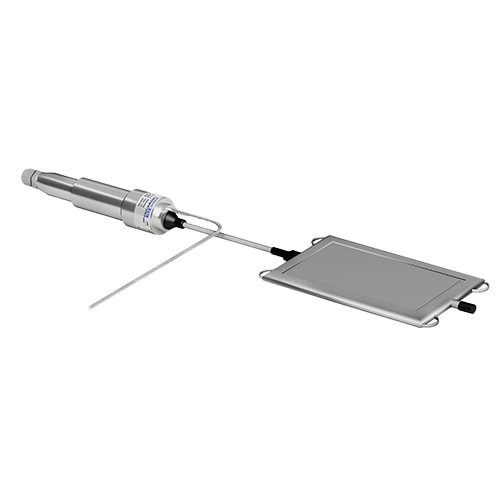

ESC-30V is used to monitor the radial and tangential stresses in the shotcrete of tunnels, particularly where the New Austrian Tunnelling Method and underground works are being implemented. Measurement of radial and tangential stresses within shotcrete lining is a vital feature of this type of stress cell. The stress cell has a rectangular pressure pad which is constructed with two stainless steel plates, welded around the periphery. The pressure pad and the electron beam welded vibrating wire pressure sensor are connected together by a 6 mm Φ x 165 mm long stainless steel tube. The cavity inside the pressure sensor and the pressure pad is filled with de-aired fluid. A pinch tube ECS-30V or regroutable arrangement ESC-30V-R is provided to inflate the pressure pad after concrete around it has fully cured, to ensure proper contact between pressure pad and surrounding concrete.
Our team will reach out to you in some time
Shotcrete-Concrete stress cell
Vibrating wire
Suitable for embedment at rock-concrete interface, has a pinch tube
Monitor radial and tangential stresses in shotcrete tunnel linings, underground caverns, et.c, raft, etc.
Radial & tangential stress/pressure
1.0, 2.0, 3.5, 5.0, 10.0, 20.0, 30.0 MPa; specify
Accuracy test, leakproof test (standard tests of pressure sensor)
Hermetically sealed with electron beam welding
IP-68, water resistant up to its full range
100 x 200; 150 x 250; 200 x 300; 300 x 300 mm (LxB)
