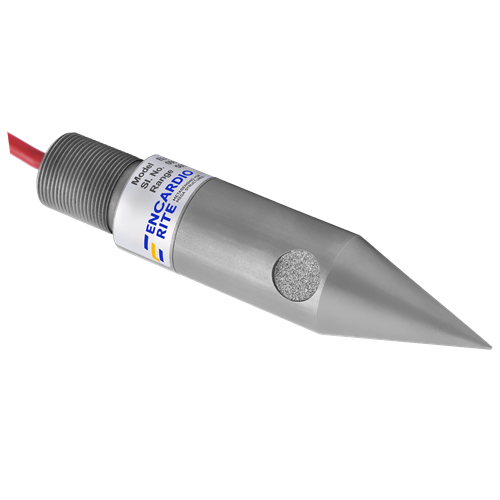

EPP-50V is a push-in type vibrating wire piezometer, designed to measure pore water pressure in soft soil/clays and landfills. It has a pointed cone at one end and drill rod threads at the other end. When threaded into a drill rod, the piezometer can be pushed into soft soil directly. The cable attached to the piezometer is passed through the drill rod. Thread options are EW drill rod thread or M28.
Our team will reach out to you in some time
Push-in piezometer
Vibrating wire
Pointed cone at one end and drill rod threads (EW/M28)
Pushed into soft soil, clays and landfilles for pore pressure monitoring
Pore pressure
0.35, 0.5, 0.7, 1.0, 2.0 MPa
Thermal cycling (-20 to +80°C), Pressure cycling (2000 cycles), individually temperature compensated, reverse pressure test, individually calibrated providing high accuracy & repeatability
Hermetically sealed with electron beam welding
IP-68, water resistant up to its full range
35 Ø x 166 L
