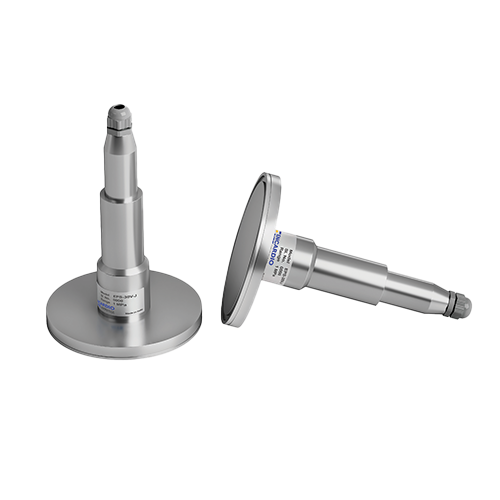

The EPS-30V-J jack out pressure cell has been designed to measure the stress on base slabs, diaphragm/slurry walls etc. Construction of a jack out pressures cell is a combination of a thin, flexible, round, flat diaphragm and a thick and rigid back plate. The plates are welded around the periphery leaving a very little gap between the two. The electron beam welded vibrating wire pressure sensor has been welded concentrically with the back plate and the cavity inside the sensor is filled with de-aired fluid.
Our team will reach out to you in some time
Jackout pressure cell
Vibrating wire
Suitable to monitor stress at face of a structural element
Monitor stress in diaphragm walls.
Stress/pressure
0.5, 1.0, 2.0, 3.5, 5.0 MPa; specify
Accuracy test, leakproof test (standard tests of pressure sensor)
Hermetically sealed with electron beam welding
IP-68, water resistant up to its full range
125 x 190 mm (dia x H)200 x 190 mm (dia x H)
