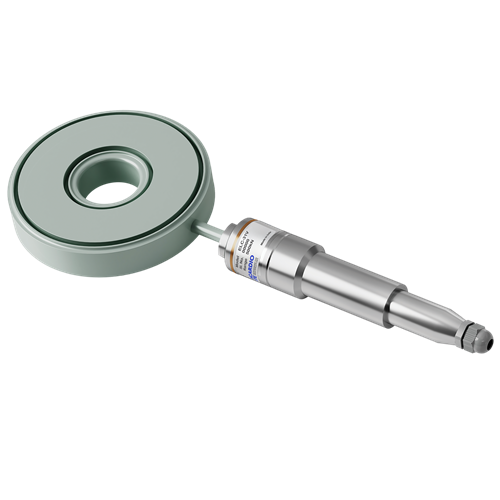

ELC-31V is a vibrating wire type center hole load cell used to determine the load in rock bolts, tieback anchors, etc. It is filled with fluid with a vibrating wire pressure sensor attached to it, to convert the load into a frequency output. A solid load cell for stress measurement in tunnel supports and struts is also available on request.
Our team will reach out to you in some time
Center hole load cell
Vibrating wire, hydraulic
Fluid filled with a vibrating wire pressure sensor attached
To measure compressive load, axial forces in struts, load testing in piles
Load/force
250/52, 500/52, 750/78, 1000/105, 1500/105, 2000/130, 2500/0 kN/mm (ID)
Accuracy test, Overload test
Hermetically sealed with electron beam welding, great resistance to extraneous forces, long fatigue life, protected against dust, moisture and adverse environmental conditions
IP-68, water resistant up to 10 mwc
Depends on range
