The EAN-26M-H model is one of the most advanced MEMS digital inclinometer systems of the world. It uses Android mobile phone as a readout and data storage unit so that it is having the high computational power and high-resolution color display capabilities. This system is used to accurately measure horizontal movement including settlement and heave of storage tank, structures, landfills, etc.
The horizontal inclinometer system provides significant quantitative data on the magnitude of settlement and its variation with time. It gives information on pattern of settlement and effectiveness of construction control measures.

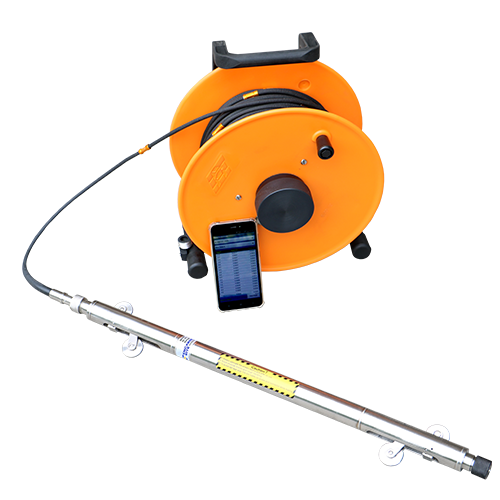

This system consists of inclinometer casings with couplings, probes with operating cables and a mobile phone data logger. Accessories like a dummy probe and calibration jig are available on demand.
Our team will reach out to you in some time
Inclinometer - horizontal
MEMS, uniaxial; horizontal
Consists of probe, Cable reel assembly and accessories for manual readings of vertical gagewell
To measure settlement/heave in ground or in structure, such as storage tank, landfills
Lateral movement/ inclination
± 30°
Accuracy test, borehole traverse test,
Gage length of 0.5 m provides better profile of deformation. Mobile readout provides excellent features to check data at site
IP-68, water resistant up to 100 mwc
25.5 mm Ø x 685 mm long (excluding wheel arm)
