Uplift pressure measuring device consists of a perforated/non-perforated pipe of 50 mm dia of adequate strength. The pipe is inserted in a drilled hole in the foundation from the instrumentation gallery to the required depth. To the other end of the pipe in the gallery model EPU-20Vuplift pressure sensor is connected.

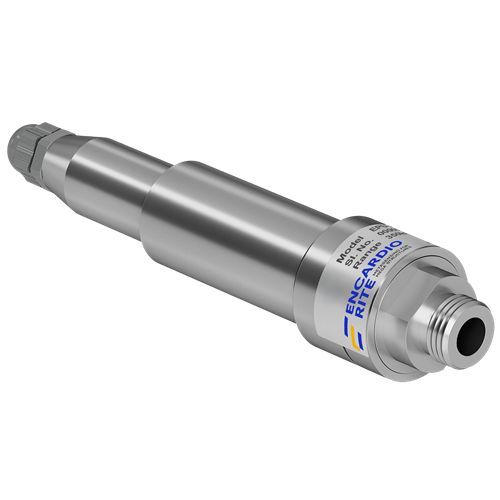

Model EPU-20V uplift pressure sensor incorporates the latest vibrating wire technology to provide remote digital readout of fluid and/or water pressure in standpipes, bore holes and embankments. It is similar to the model EPP-30V piezometer except that instead of the special filter, a 25 mm BSP adaptor is provided for the pipe connection. The water oozing through internal pores or seams in rock formations of dam foundations, mass concrete /foundation soil of structures, reclaimed land soil etc. percolates upward through the pipe to the sensor
± 0.25 % fs normal
± 0.1 % fs optional
Our team will reach out to you in some time
Uplift pressure sensor
Vibrating wire
25 mm BSP adaptor is provided for pipe connection, in place of filter
Monitor uplift pressure of water in foundation of dams and concrete structures
Uplift pressure
0.2, 0.35, 0.5, 1.0 MPa; specify
Thermal cycling (-20 to +80°C), Pressure cycling (2000 cycles), individually temperature compensated, reverse pressure test, individually calibrated providing high accuracy & repeatability
Hermetically sealed with electron beam welding
IP-68, water resistant up to its full range
42 Ø x 210 L
