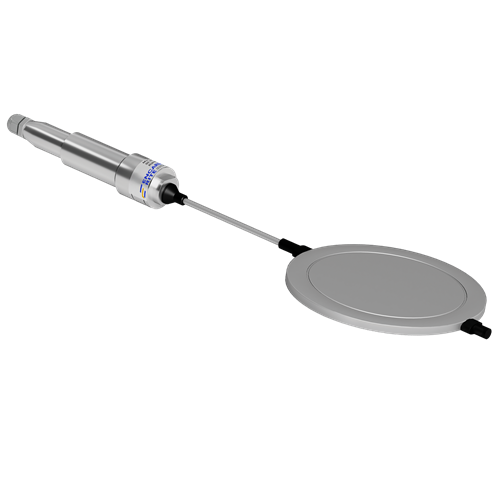

The EPS-30V-S earth pressure cell is used to measure total pressure in the earth fills and embankments. Two stainless steel discs welded around the periphery forms a flexible, circular and flat pressure pad. The pressure pad is connected to an electron beam welded vibrating wire pressure sensor with a 6 mm diameter x 165 mm long stainless tube. The narrow cavity between the pressure pad and the tube is filled with de-aired fluid. Pressure applied by the earth on the capsule is transmitted through the fluid to the vibrating wire pressure sensor, which converts it into an electrical signal.
Our team will reach out to you in some time
Earth pressure cell
Vibrating wire
Suitable for embedment in soil
Monitor total pressure in earth fills and embankments
Stress/total pressure
0.5, 1.0, 2.0, 3.5, 5.0, 10.0 MPa; specify
Accuracy test, leakproof test (standard tests of pressure sensor)
Hermetically sealed with electron beam welding
IP-68, water resistant up to its full range
200 x 7 mm (dia x thick)
