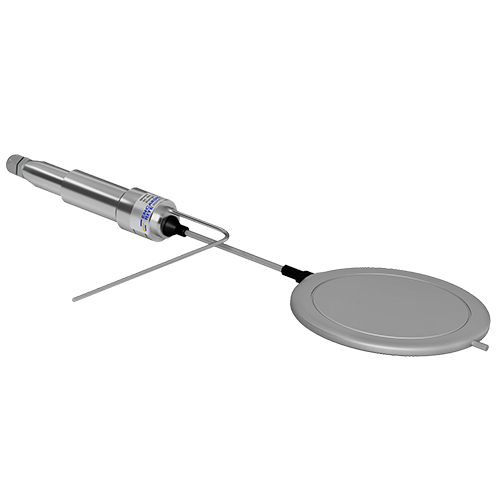

The EPS-30V-C is a concrete pressure cell designed to be installed in concrete. This sensor is similar to the EPS-30V-S cell, except having a 600 mm long pinch tube. The purpose of the pinch tube comes when the concrete is cured. To ensure proper contact between the pressure pad and the surrounding concrete, the pinch tube is squeezed to push the fluid into the pressure pad to expand/inflate it.
Our team will reach out to you in some time
Concrete pressure cell
Vibrating wire
Suitable for embedment in concrete, has a pinch tube
Monitor stress in concrete mass, such as dams, base slab, etc.
Stress/total pressure
0.5, 1.0, 2.0, 3.5, 5.0, 10.0 MPa; specify
Accuracy test, leakproof test (standard tests of pressure sensor)
Hermetically sealed with electron beam welding
IP-68, water resistant up to its full range
200 x 7 mm (dia x T)
