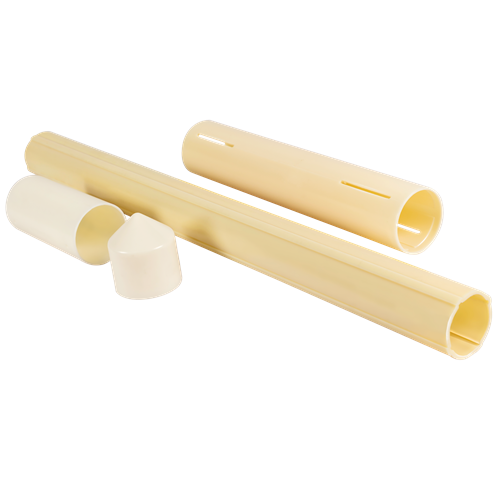

The inclinometer casings can be installed in a borehole, embedded in fill or concrete during construction, or fixed to the face of a completed structure. These are self-aligning ABS casings with longitudinal keyways at 90˚ for probe orientation.
The Encardio Rite model EAN-AT series of inclinometer access tubes are 3 m (~9.85 ft) in length. The casings and couplings (fixed or telescopic) are joined together with pop rivets. Mastic tape is used over the joints to make a waterproof joint. Details of access tubing and accessories required are given below:
1. EAN-AT70 self-aligning access tube: Self-aligning ABS tubing, 70 mm o.d. (~ 2.75 in.), 58 mm i.d., 3 m length.
2. EAN-FC70 ABS fixed coupling (70 mm): ABS fixed coupling for 70 mm o.d. access tube; 77 mm o.d. x 160 mm in length.
3. EAN-TC70 ABS telescopic coupling (70 mm): ABS telescopic coupling for 70 mm o.d. access tube; 77 mm o.d. x 300 mm length, displacement up to 150 mm.
4. EAN-EC70 End cap for ABS tubing (70 mm): ABS end cap for 70 mm o.d. access tube to fit at the top or bottom.
5. EAN-TT70 Top cap for ABS tubing (70 mm): ABS lockable top cap for 70 mm O.D. access tube.
6. Pop rivets for ABS tubing: Pop rivet packets of 100 numbers for fixed coupling.
7. Self-tapping screws for ABS tubing: Self-tapping screw packets of 100 numbers for telescopic coupling.
8. Pop rivet gun: Handheld and manually operated.
9. Power drill: 230 V, 50 Hz operation power drill with two 3.2 mm dia drill bits.
10. Mastic tape: 50 mm width x 10 m long mastic tape.
11. 3ABS casing sealing accessories: BOPP tape, 50 mm width x 30 m long.
12. EAN-PC: Protective cover
Note: ABS casing with 85 mm O.D. (~ 3.35 in.) and 77 mm I.D. is available on request.
| Casing | ABS, 70 mm o.d., 58 mm i.d., 3 m long |
| Fixed coupling | ABS, 77 mm o.d., 160 mm long |
| Telescopic coupling | ABS, 77 mm o.d., 400 mm long, (150 mm displacement range) |
| End caps | ABS |
